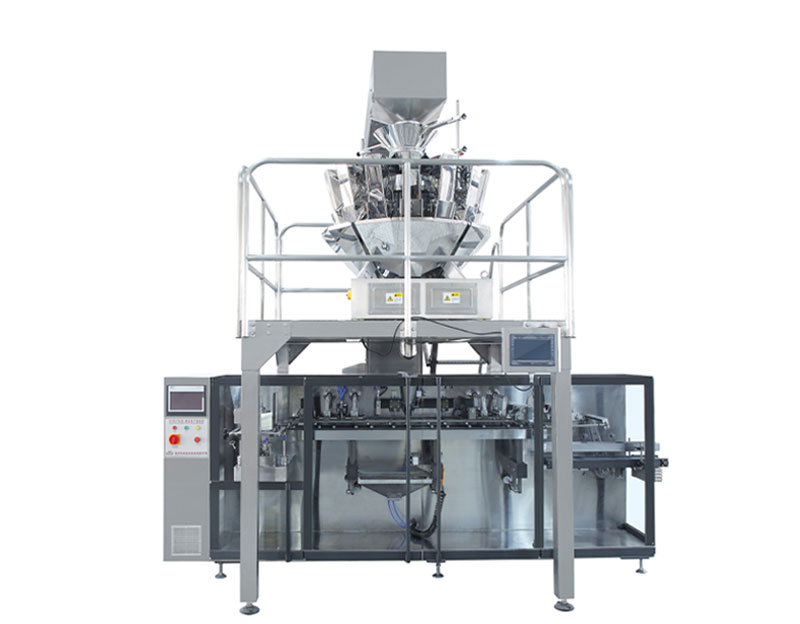

Model:KXS-270(D) Automatic Doypack Packing Machine
Packing speed:
40-50bags/min
Bag width range:
50~120mm
Bag height range:
70~350mm
Description
The Automatic Doypack Packing Machine is a packaging virtuoso. It deftly fills and seals doypacks with high precision and speed, ensuring products are well - packaged and ready for market.
The Automatic Doypack Packing Machine is a staple in the snack industry. In a nuts factory, it efficiently fills doypacks, providing an attractive, resealable package for products sold in grocery stores.
Main Technical Parameter
Application bag material | PE，PP，CPP，OPP，PET，PA（NY），VMPET、VMCPP |
Packing speed | 40-50bags/min |
Packing accuracy | ±1.5% |
Bag width range | 50~120mm |
Bag height range | 70~350mm |
Air consumption | 0.8m3/min |
Working pressure | 0.6-0.8Mpa |
Maximum packing weight | 1000g |
Power supply | 4kw，220V、380V、450V |
Machine weight | 2200kg |
Machine dimension (L×w×H) | 3100mm×1320mm×1400mm |
Rack material | 304 stainless steel shell, the body is plastic coated carbon steel |
Core elemen | Pneumatic Element：Japan SMC |
Electrical Element：Japan Omron PLC、Variable-frequency Drive、Touch screen |
