Horizontal Cartoning Machine: Definition, Benefits & Industry Applications

June 06, 2025

Definition:

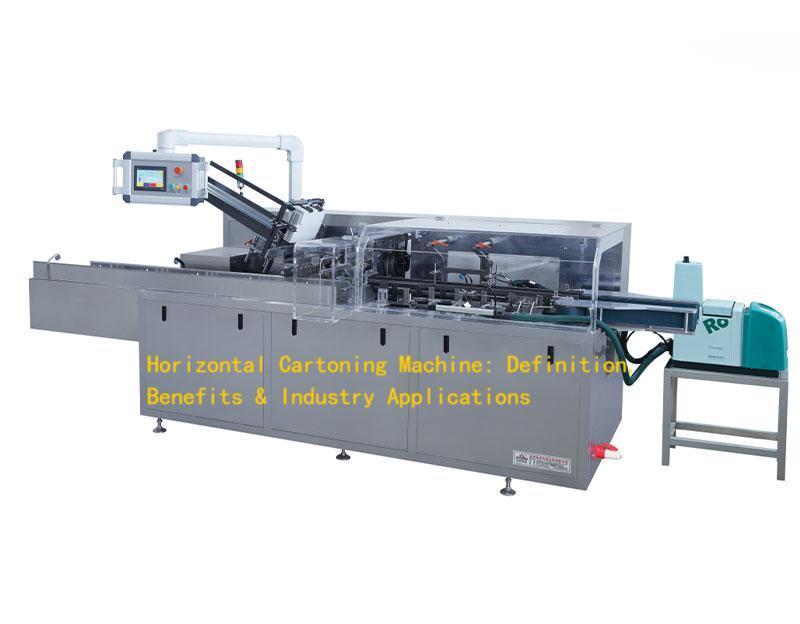

A Horizontal Cartoning Machine is an automated packaging system that horizontally loads products (e.g., pharmaceuticals, food, cosmetics) into pre-folded cartons and seals them at high speeds.

Key Components:

• Product Infeed Conveyor (aligns items for loading)

• Carton Magazine (stores pre-glued flat cartons)

• Carton Erecting & Opening Mechanism (suction cups/pneumatic arms)

• Product Insertion Unit (pushes items into boxes)

• Closing & Sealing System (hot melt glue/tuck-in flaps)

• Control Panel with HMI (touchscreen for speed/parameter adjustments)

2. Top 5 Benefits of Horizontal Cartoners

① High-Speed Packaging (60–400 boxes/min)

• 10x faster than manual packing, ideal for pharma blister packs and beverage multipacks.

② Reduced Labor Costs

• Replaces 8–15 workers per shift (based on 8-hour production).

③ Minimal Product Damage

• Gentle handling with servo-driven insertion (critical for glass vials and electronics).

④ Flexible Carton Compatibility

• Handles tray-style, sleeve, and gable-top boxes with quick changeover (<5 mins).

⑤ Compliance & Traceability

• Supports FDA/EU GMP standards with optional vision inspection (barcode verification,missing leaflet detection).

3. Horizontal vs. Vertical Cartoning Machines: Key Differences

4. Industry Applications

① Pharmaceuticals

• Vaccine packaging (COVID-19 vials, auto-insertion of PI sheets)

• Blister pack loading (with serialization for anti-counterfeiting)

② Food & Beverage

• Snack multipacks (e.g., chocolate assortment boxes)

• PET bottle bundling (with tamper-evident seals)

③ Cosmetics & Electronics

• Luxury gift sets (embedding foam inserts automatically)

• ESD-safe packaging for circuit boards
