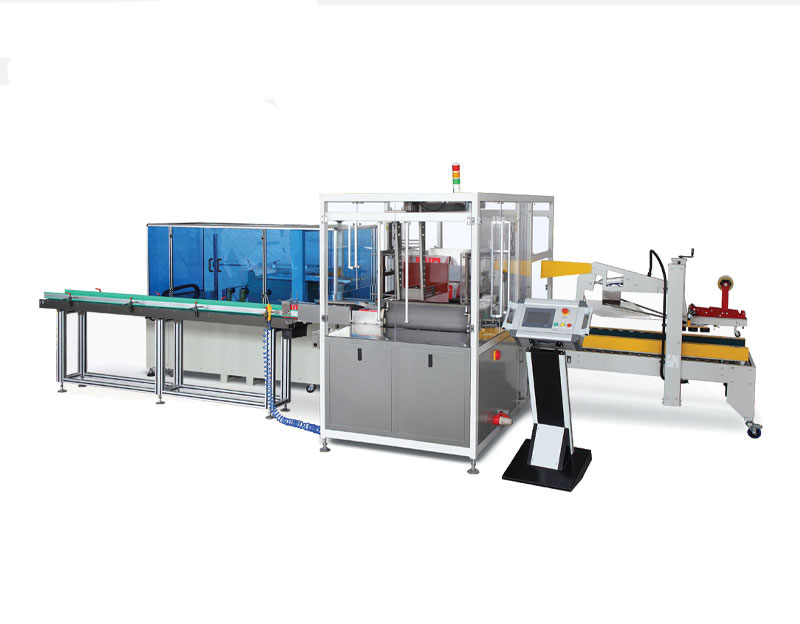

Model:KXZ-600 Master Carton Packaging Machine
Description
The KXZ - 600 Master Carton Packaging Machine is a powerhouse for large - scale packaging. It swiftly constructs and fills master cartons, ensuring high - speed, accurate, and reliable packaging to streamline operations.
The KXZ - 600 excels in large - scale product bundling. In a beverage plant, it rapidly packages cases of bottled drinks into master cartons, optimizing storage and transportation for high - volume distribution.
Main Technical Parameter
Carton Forming Machine
Carton Width | 150-510mm |
Carton Height | 100-500mm |
Carton Length | 200-800mm |
Overall Dimension | L2200×W2100×H1500mm |
Sealing Speed | 10-15box/min |
Electric | 220V/380V 50/60Hz |
Air Pressure | 5.5-6kg/cm2 |
Suitable Tape | W(48,60,72)mm×L1000y |
Weight | 400KGS |
Automatic Carton Filling Machine
Carton width | 150mm-500mm |
Carton height | 100mm-350mm |
Carton length | 200mm-500mm |
Table height | 1000mm-1100mm |
speed | 1-5box/min |
Power supply | 220V 56/60Hz |
Air compressor | 5.5-6kg/cm2 |
Machine weight | 1100kg |
Overall dimension | L2100×W1300×H1900mm |
Carton Sealing Machine
Carton Width | 150-500mm |
Carton Height | 150-575mm |
Carton Length | 500-600mm |
Table Height | 600-750mm |
Overall Dimension | L1830×W835×H1640mm |
Sealing Speed | 10-15box/min |
Electric | 220V 50/60Hz |
Air Pressure | 5.5-6kg/cm2 |
Suitable Tape | W(48,60,72)mm×L1000y |
Weight | 150KGS |
