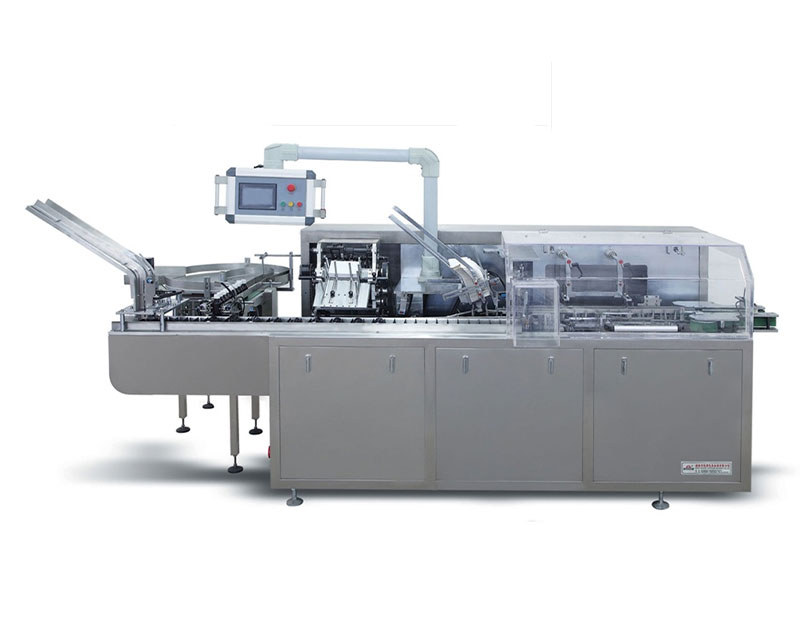

Model:KXZ-100B Automatic Tube Cartoning Machine
Encasing Speed:
30-80 boxes/min
Box quality requirement:
250-350g/m2
Box dimension range:
(55-200)mm×(30-90)mm×(15-60)mm
Description
The KXZ - 100B Automatic Tube Cartoning Machine is engineered for high - speed tube packaging. It precisely inserts tubes into cartons with an advanced positioning system, and is adaptable to various tube sizes, from cosmetics to pharmaceuticals.
In the cosmetics industry, the KXZ - 100B Automatic Tube Cartoning Machine accurately packs lipstick and foundation tubes. For pharmaceutical firms, it handles ointment tubes efficiently, streamlining production lines.
Main Technical Parameter
Encasing Speed | 30-80 boxes/min | |
Box | Quality requirement | 250-350g/m2 (according to its dimension to confirm) |
Dimension range (L×W×H) | (55-200)mm×(30-90)mm×(15-60)mm can customize according to your requirement | |
Compressed air | Working pressure | ≧0.6mpa |
Air consumption | 20m3/h | |
Power supply | 380V 50Hz | |
Motor power | 1.5KW | |
Machine dimension (L×w×H) | 3800*1100*1900mm | |
Machine weight | 1200KGS | |
