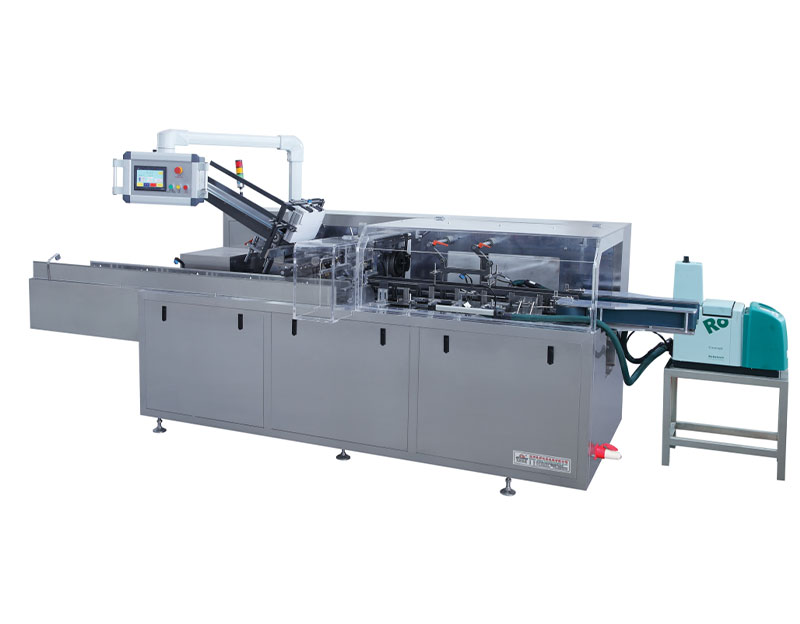

Model:KXZ-130B Automatic Tray Food Cartoning Machine
Encasing Speed:
30-60boxes/min
Box quality requirement:
250-450g/m2
Box dimension range:
(70-250)mm×(50-120)mm×(35-105)mm
Description
The KXZ - 130B Automatic Tray Food Cartoning Machine is designed for food tray packaging. It handles fresh fruits, snacks, etc. at 60 trays/min, ensuring fast and accurate packaging with less product damage. Many food firms praise it for boosting productivity.
The KXZ - 130B shines in food processing. In bakery, it swiftly packs bread into trays, ensuring uniform packaging. In frozen food plants, it neatly packages ice cream bars, cutting costs and boosting
output.
Main Technical Parameter
Encasing Speed | 30-60boxes/min | |
Box | Quality requirement | 250-450g/m2 (according to its dimension to confirm) |
Dimension range (L×W×H) | (70-250)mm×(50-120)mm×(35-105)mm can customize according to your requirement | |
Compressed air | Working pressure | ≧0.6mpa |
Air consumption | 20m3/h | |
Power supply | 380V 50Hz | |
Motor power | 1.5KW | |
Machine dimension (L×w×H) | 4600*1350*1900mm | |
Machine weight | 1800KGS | |
