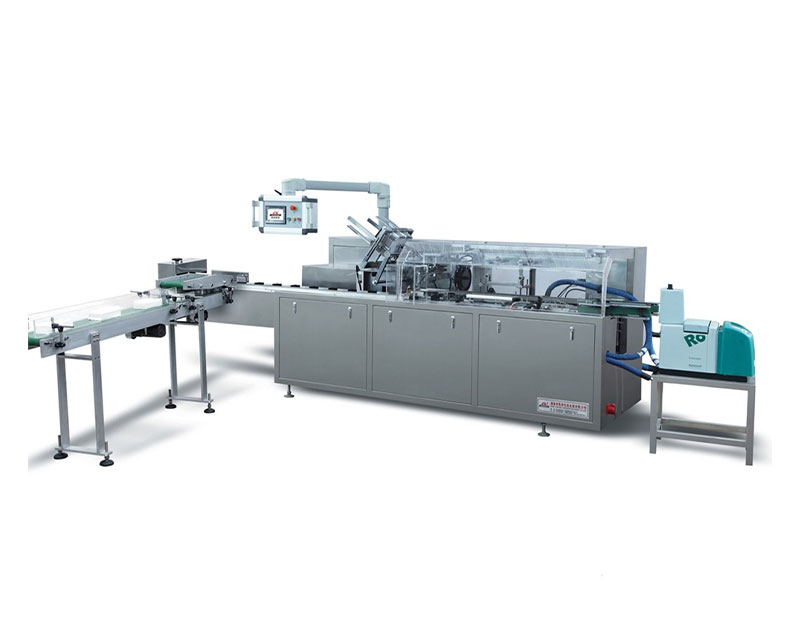

Model:KXZ-130B Automatic Tissue Paper Cartoning Machine
Encasing Speed:
30-60boxes/min
Box quality requirement:
250-450g/m2
Box dimension range:
(70-250)mm×(50-120)mm×(35-105)mm
Description
The KXZ - 130B Automatic Tissue Paper Cartoning Machine is designed for high - speed tissue paper packaging. It features precise paper - folding and carton - filling mechanisms. With a sturdy build, it ensures continuous operation and low error rates compared to similar models.
In large - scale tissue production plants, the KXZ - 130B efficiently packs boxed facial tissues and roll toilet papers. For mid - sized manufacturers, it ensures fast and accurate packaging of travel - sized tissue packs, enhancing productivity.
Main Technical Parameter
Encasing Speed | 30-60boxes/min | |
Box | Quality requirement | 250-450g/m2 (according to its dimension to confirm) |
Dimension range (L×W×H) | (70-250)mm×(50-120)mm×(35-105)mm can customize according to your requirement | |
Compressed air | Working pressure | ≧0.6mpa |
Air consumption | 20m3/h | |
Power supply | 380V 50Hz | |
Motor power | 1.5KW | |
Machine dimension (L×w×H) | 4600*1350*1900mm | |
Machine weight | 1800KGS | |
