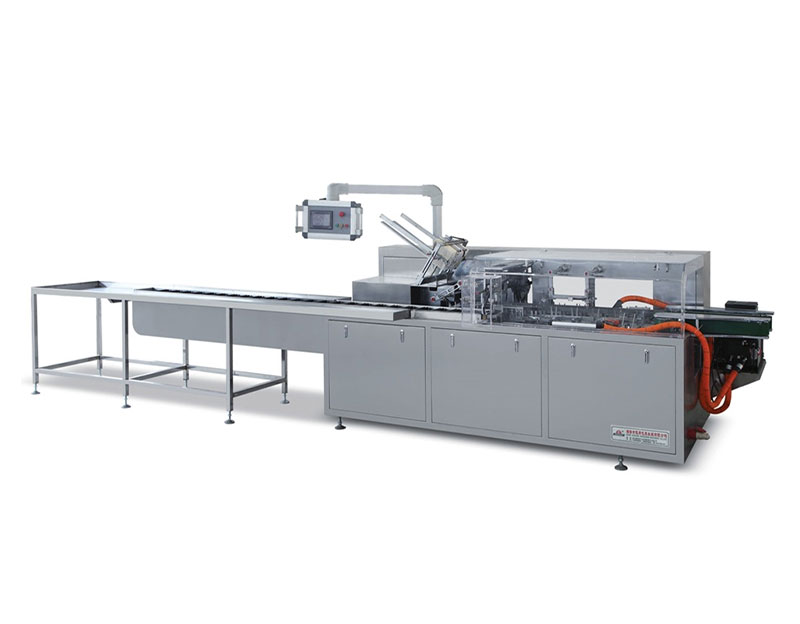

Model:KXZ-130B Automatic Stick Food Cartoning Machine
Encasing speed:
60-100Box/min
Quality requirement:
250-450g/m²
Dimension range:
(100-250)X(80-160)X(25-75)mm
Description
The KXZ - 130B Automatic Stick Food Cartoning Machine is a high - efficiency horizontal cartoner. It can pack 30 - 60 boxes per minute, accommodating box sizes from (70 - 250)×(50 - 120)×(35 - 105)mm, perfect for coffee, tea, and condiment stick packs.
The KXZ - 130B Automatic Stick Food Cartoning Machine serves food and health sectors. It efficiently packs coffee, tea sticks, sugar cubes, etc. with stable operation.
Product Applications
Main Technical Parameter
Encasing Speed | 30-60boxes/min | |
Box | Quality requirement | 250-450g/m2 (according to its dimension to confirm) |
Dimension range (L×W×H) | (70-250)mm×(50-120)mm×(35-105)mm can customize according to your requirement | |
Compressed air | Working pressure | ≧0.6mpa |
Air consumption | 20m3/h | |
Power supply | 380V 50Hz | |
Motor power | 1.5KW | |
Machine dimension (L×w×H) | 4600*1350*1900mm | |
Machine weight | 1800KGS | |
