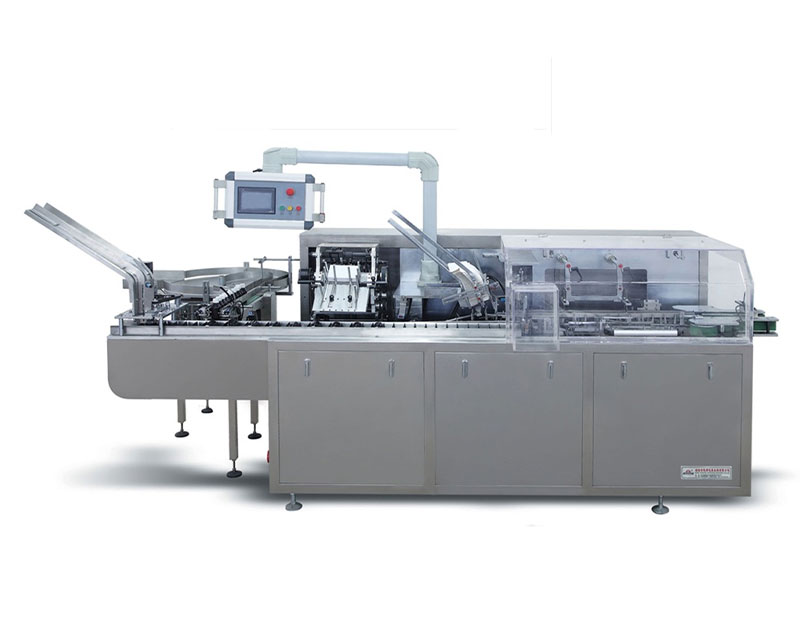

Model:KXZ-100B Automatic Small Box Cartoning Machine
Encasing Speed:
30-80 boxes/min
Box quality requirement:
250-350g/m2
Box dimension range:
(55-200)mm×(30-90)mm×(15-60)mm
Description
The KXZ - 100B Automatic Small Box Cartoning Machine is designed for precision small - box packaging. It features a high - speed operation with accurate box - folding and product - inserting functions. Its versatility suits various small - sized products like cosmetics samples, small - portion snacks, and mini - sized toys.
KXZ-100B Automatic Small Box Cartoning Machine is suitable for packing all kinds of product into carton box. Can connect to other machines to be automatic whole line.
Main Technical Parameter
Encasing Speed | 30-80 boxes/min | |
Box | Quality requirement | 250-350g/m2 (according to its dimension to confirm) |
Dimension range (L×W×H) | (55-200)mm×(30-90)mm×(15-60)mm can customize according to your requirement | |
Compressed air | Working pressure | ≧0.6mpa |
Air consumption | 20m3/h | |
Power supply | 380V 50Hz | |
Motor power | 1.5KW | |
Machine dimension (L×w×H) | 3800*1100*1900mm | |
Machine weight | 1200KGS | |
