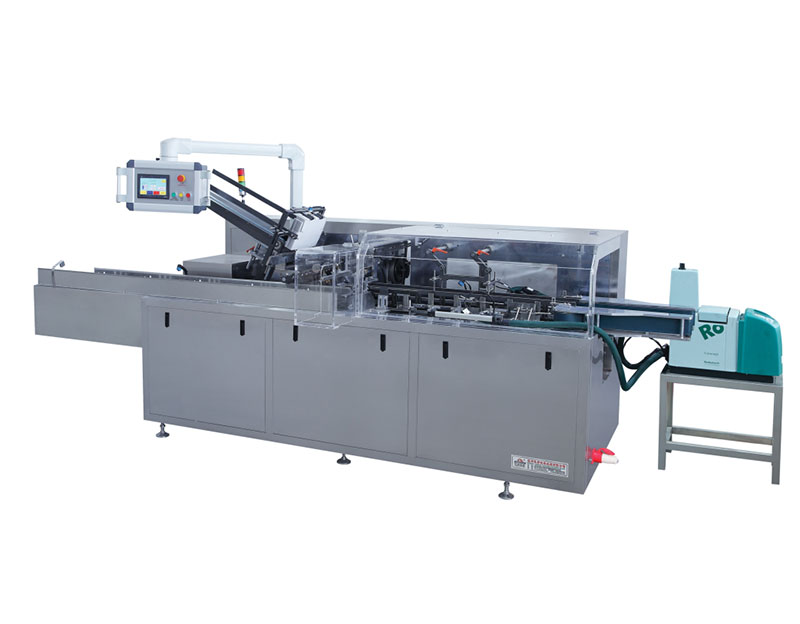

Model:KXZ-200B Automatic Pouch Foods Cartoning Machine
Encasing Speed:
30-50boxes/min
Box quality requirement:
250-450g/m2
Box dimension range:
(100-350)mm×(100-200)mm×(20-80)mm
Description
The KXZ - 200B Automatic Pouch Foods Cartoning Machine efficiently packages pouch - packed foods. Its servo - motor control ensures accurate integration, and the robust build withstands high - volume production, streamlining the process for snacks, condiments, and ready - to - eat meals.
In the snack food industry, the KXZ - 200B efficiently cartons pouch - packed potato chips. For sauce producers, it neatly packages pouch - packed ketchup, reducing manual labor and improving packaging efficiency.
Main Technical Parameter
Encasing Speed | 30-50boxes/min | |
Box | Quality requirement | 250-450g/m2 (according to its dimension to confirm) |
Dimension range (L×W×H) | (100-350)mm×(100-200)mm×(20-80)mm can customize according to your requirement | |
Compressed air | Working pressure | ≧0.6mpa |
Air consumption | 20m3/h | |
Power supply | 380V 50Hz | |
Motor power | 1.5KW | |
Machine dimension (L×w×H) | 4200*1370*1900mm | |
Machine weight | 1500KGS | |
