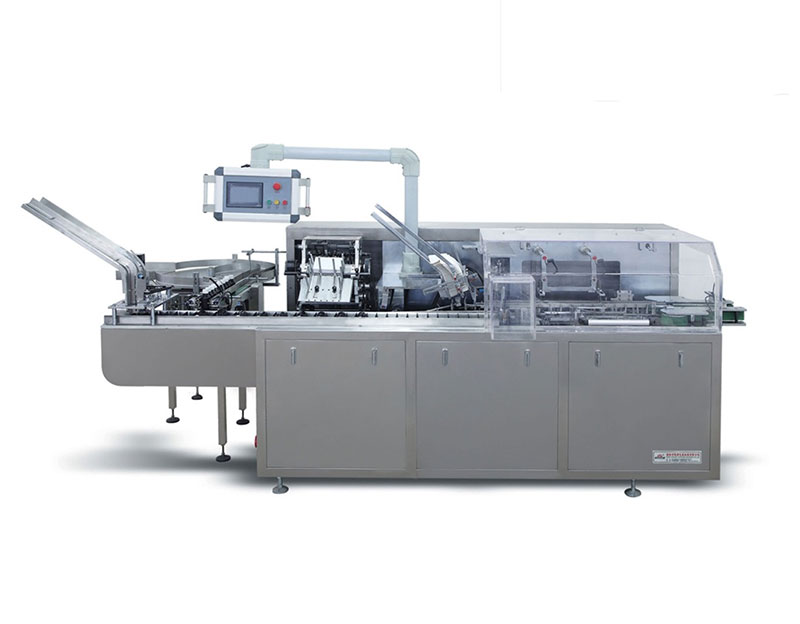

Model:KXZ-100B Automatic Bottle Cartoning Machine
Encasing Speed:
30-80 boxes/min
Box quality requirement:
250-350g/m2
Box dimension range:
(55-200)mm×(30-90)mm×(15-60)mm
Description
The KXZ - 100B Automatic Bottle Cartoning Machine is designed for seamless bottle - to - carton packaging. It has an intelligent bottle - handling system, accurately placing bottles of various shapes and sizes into cartons at high speed.
In the beverage industry, the KXZ - 100B efficiently packs small - sized juice bottles into cartons. For skincare brands, it precisely boxes delicate glass bottles of serums, ensuring fast and accurate packaging.
Main Technical Parameter
Encasing Speed | 30-80 boxes/min | |
Box | Quality requirement | 250-350g/m2 (according to its dimension to confirm) |
Dimension range (L×W×H) | (55-200)mm×(30-90)mm×(15-60)mm can customize according to your requirement | |
Compressed air | Working pressure | ≧0.6mpa |
Air consumption | 20m3/h | |
Power supply | 380V 50Hz | |
Motor power | 1.5KW | |
Machine dimension (L×w×H) | 3800*1100*1900mm | |
Machine weight | 1200KGS | |
