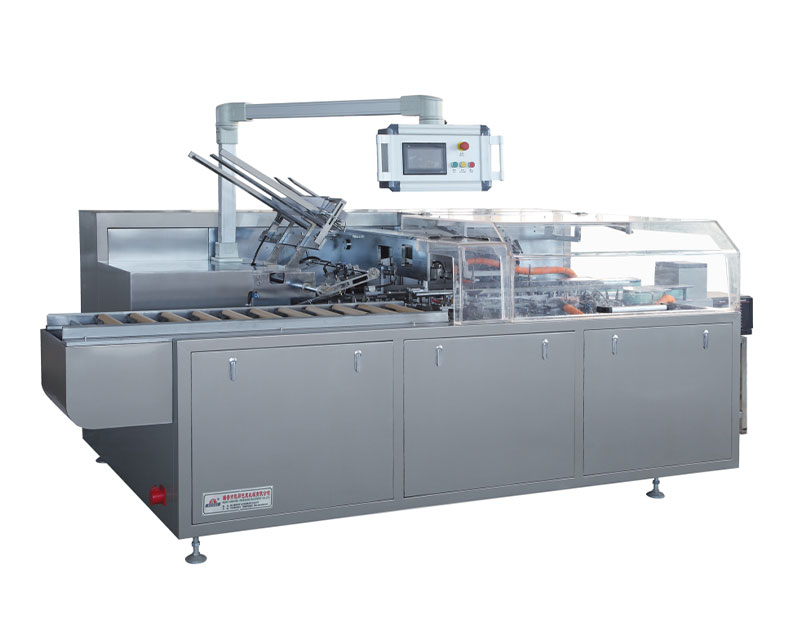

Model:KXZ-450C Automatic Aluminium foil Cartoning Machine
Encasing Speed:
30-600box/min
Box quality requirement:
250-450g/m2
Box dimension range:
(100-450)mm×(20-80)mm×(20-90)mm
Description
The KXZ - 450C automatic cling film/aluminum film cartoning machine is designed for high - speed packaging of cling and aluminum films. It features precise film - feeding and carton - filling mechanisms, adapting well to different film widths and thicknesses.
In the food industry, the KXZ - 450C efficiently packs various - sized rolls of cling film for kitchen use. In cosmetics production, it handles aluminum - film - wrapped samples accurately, ensuring fast and reliable packaging.
Main Technical Parameter
Encasing Speed | 30-600box/min | |
Box | Quality requirement | 250-450g/m2 (according to its dimension to confirm) |
Dimension range (L×w×H) | (100-450)mm×(20-80)mm×(20-90)mm Can customize according to your requirement | |
Compressed air | Working pressure | ≧0.6mpa |
Air consumption | 20m3/h | |
Power supply | 380V 50Hz | |
Motor power | 1.5KW | |
Machine dimension (L×w×H) | 3800*1700*1700mm | |
Machine weight | 1500KGS | |
