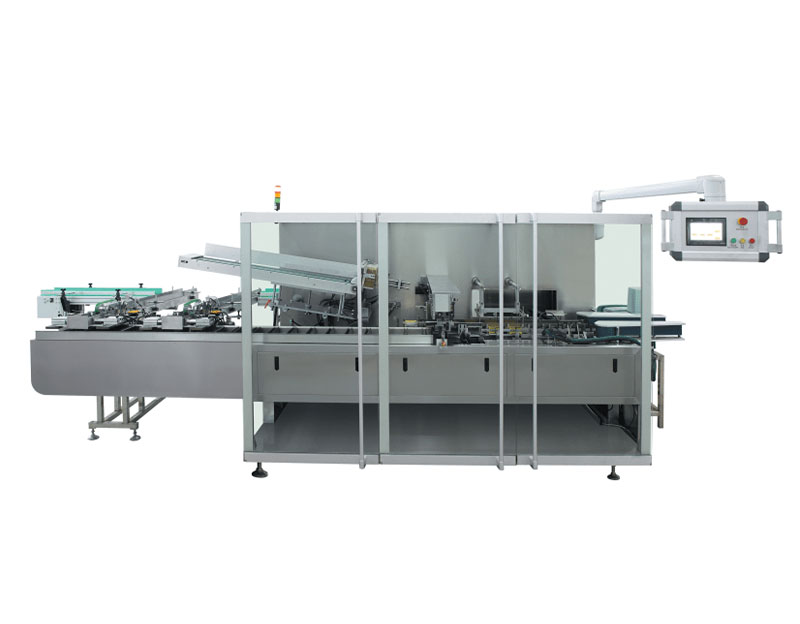

Model:KXZ-130C Automatic Middle Speed Biscuit Cartoning Machine
Encasing Speed:
60-100box/min
Box quality requirement:
250-450g/m2
Box dimension range:
(70-250)mm×(50-120)mm×(20-90)mm
Description
The KXZ - 130C Automatic Foods Cartoning Machine is a specialized solution for food packaging. It precisely and swiftly packs various food products into cartons. With high - speed operation and stable performance, it ensures efficient and reliable food cartoning.
The KXZ - 130C Automatic Foods Cartoning Machine excels in food industry packaging. For instance, it efficiently packs snack bars into cartons in large - scale production lines, ensuring accurate and fast cartoning.
Main Technical Parameter
Encasing Speed | 60-100box/min | |
Box | Quality requirement | 250-450g/m2 (according to its dimension to confirm) |
Dimension range (L×W×H) | (70-250)mm×(50-120)mm×(20-90)mm special request can do special design | |
Compressed air | Working pressure | ≧0.6mpa |
Air consumption | 20m3/h | |
Power supply | 380V 50Hz | |
Motor power | 1.5KW | |
Machine dimension (L×w×H) | 4500*1500*1900mm | |
Machine weight | 3000KGS | |
