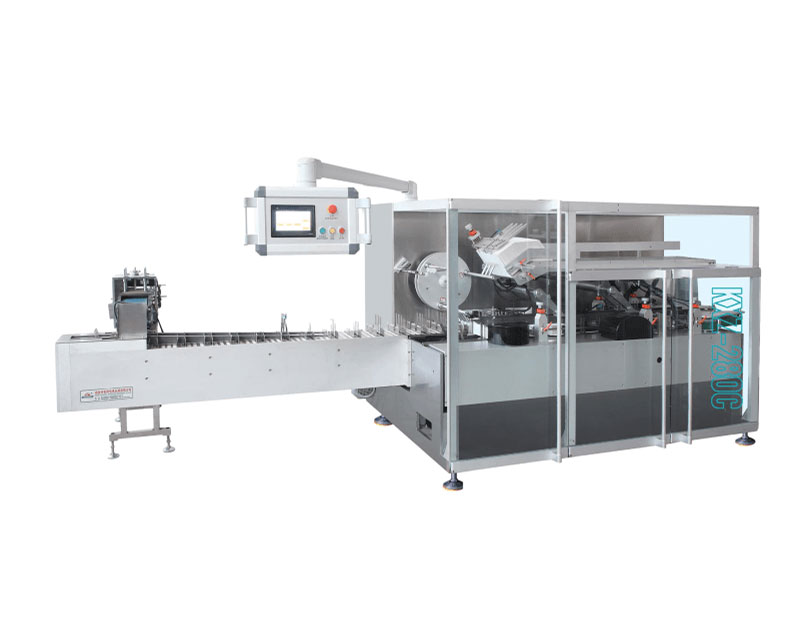

Model:KXZ-280C Automatic High Speed Tube Cartoning Machine
Encasing Speed:
100-200 boxes/min
Box quality requirement:
250-450g/m2
Box dimension range:
(100-250)mm×(60-130)mm×(20-70)mm
Description
The KXZ - 280C Automatic High Speed Cartoning Machine is a packaging powerhouse. It can handle a vast array of products, automatically and rapidly packing them into cartons with exceptional precision, ensuring a seamless packaging process
The KXZ - 280C Automatic High Speed Cartoning Machine is a boon for high - volume production. In a large - scale snack food factory, it efficiently cartons bags of chips, maintaining a rapid and accurate packaging pace.
Main Technical Parameter
Encasing Speed | 100-200 boxes/min (according to materials) | |
Box | Quality requirement | 250-450g/m2 (according to its dimension to confirm) |
Dimension range (L×W×H) | (100-250)mm×(60-130)mm×(20-70)mm can customize according to your requirement | |
Compressed air | Working pressure | ≧0.6mpa |
Air consumption | 20m3/h | |
Power supply | 380V 50Hz | |
Motor power | 1.5KW | |
Machine dimension (L×w×H) | 5600*1800*1900mm | |
Machine weight | 3000KGS | |
