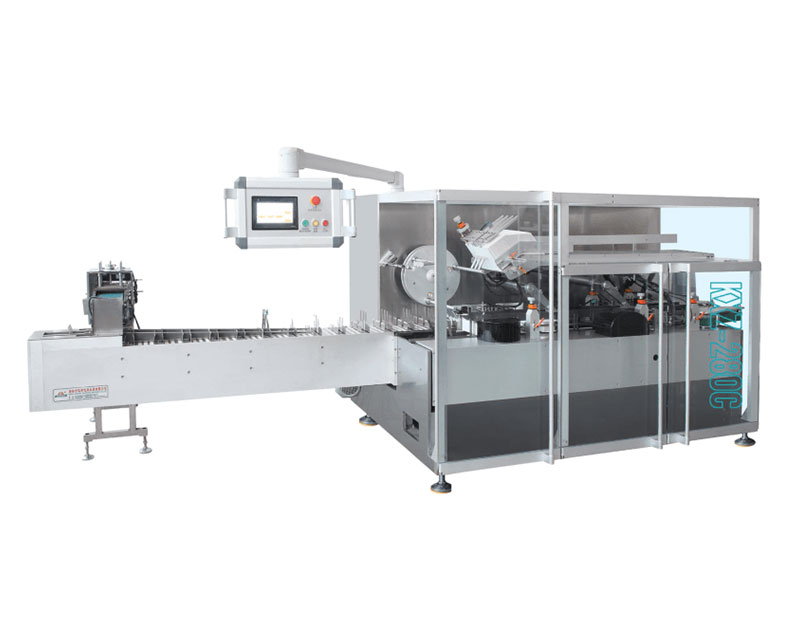

Model:KXZ-280C Automatic High Speed Powder Cartoning Machine
Encasing Speed:
100-200 boxes/min
Box quality requirement:
250-450g/m2
Dimension range:
(100-250)mm×(60-130)mm×(20-70)mm
Description
The KXZ - 280C Automatic High Speed Cartoning Machine is a high - performance packaging workhorse. It expertly and speedily loads products into cartons. With advanced technology, it ensures consistent, high - speed operation for efficient packaging.
The KXZ - 280C Automatic High Speed Cartoning Machine is designed for high - volume packaging needs. In a beverage factory, it rapidly packs cans of energy drinks into cartons, maintaining a fast and accurate packaging process.
Main Technical Parameter
Encasing Speed | 100-200 boxes/min (according to materials) | |
Box | Quality requirement | 250-450g/m2 (according to its dimension to confirm) |
Dimension range (L×W×H) | (100-250)mm×(60-130)mm×(20-70)mm can customize according to your requirement | |
Compressed air | Working pressure | ≧0.6mpa |
Air consumption | 20m3/h | |
Power supply | 380V 50Hz | |
Motor power | 1.5KW | |
Machine dimension (L×w×H) | 5600*1800*1900mm | |
Machine weight | 3000KGS | |
